HBM4 Yield Crisis: The $100 Billion Bottleneck of 2026 AI

The HBM4 Yield Crisis has replaced architectural design as the primary threat to global AI scaling in 2026. While the previous discourse focused on the potential of the “Memory Fortress,” the brutal reality of 16-layer stacking failure rates is now forcing a massive downward revision of AI ROI projections across the entire semiconductor value chain.

Executive Summary: The Stacking Nightmare

1. The 16-Layer Wall: Cumulative yield for 16-layer HBM4 has dipped below 20% at key foundries, effectively tripling the effective cost per unit.
2. Hybrid Bonding Friction: The transition from micro-bumps to copper-to-copper hybrid bonding is causing unprecedented thermal expansion mismatches during mass production.
3. Downstream Contagion: Delays in functional HBM4 stacks are creating a “dead zone” for NVIDIA Rubin R100 shipments, stalling $100 billion in planned data center expansions.

HBM Generation	Stacking Density	Target Yield (Q2 2026)	Realized Yield (Actual)
HBM3e	12-Layer	70%	68%
HBM4 (Standard)	12-Layer	55%	41%
HBM4 (Advanced)	16-Layer	45%	18% – 22%

Market & Economic Friction

The market’s previous optimism, detailed in our analysis of HBM4 and On-Device AI, assumed a seamless transition to vertical integration. However, the HBM4 Yield Crisis has introduced a “Scarcity Premium” that even the wealthiest hyperscalers cannot ignore. This yield gap is the silent driver behind the recent AI ROI Reality Check, as the cost of “failed silicon” is now being passed directly to the end customer.

Technical Deep-Dive & ROI Analysis

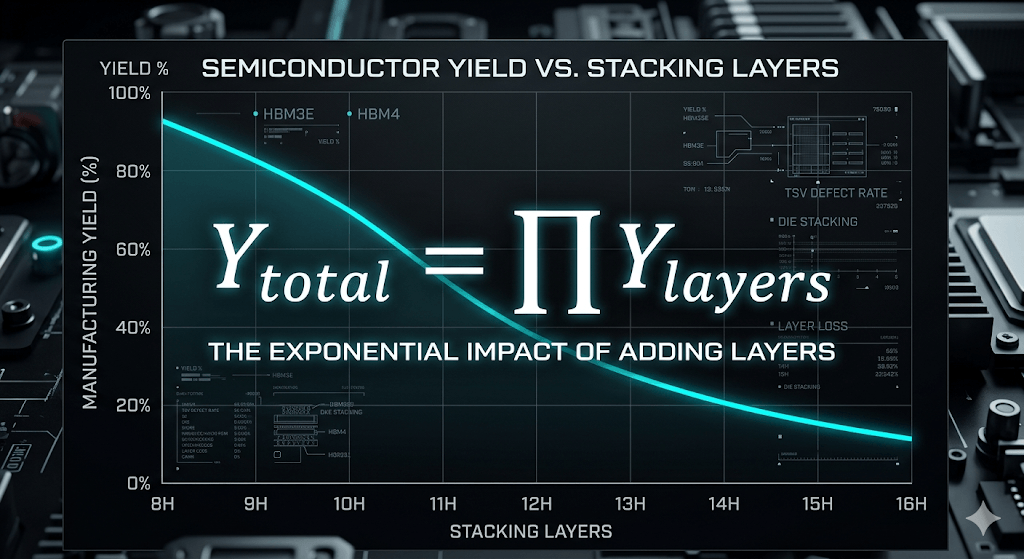

The fundamental problem is mathematical. In a 16-layer stack, the total yield is the product of each individual layer’s yield. If each layer has a 95% success rate, the final stack yield is barely 46%. At current 2026 complexities, those individual layer rates are much lower. Using the probability model for multi-layer stacks, we can visualize why the move to 16H is causing an exponential surge in TCO (Total Cost of Ownership).

“In 2024, we worried about design. In 2026, we pray for the bonding. The HBM4 yield gap is the single most expensive error in semiconductor history.” — By TMA

2026 Investment Roadmap & Risk Factors

Investors must pivot away from “pure-play” memory designers and toward Advanced Packaging Metrology firms. The entities that provide the “eyes” to see defects within the stack are the only ones insulated from the yield crash. The primary risk factor is a potential “Design Retreat”: if yields do not hit 40% by Q4 2026, NVIDIA may be forced to downgrade the Rubin architecture to HBM3e, effectively resetting the AI performance clock by 18 months.

Conclusion: The Precision Reckoning

The HBM4 Yield Crisis is a sobering reminder that in the era of Physical AI, software cannot outrun the limitations of material science. The “Memory Fortress” is currently a prison of its own complexity. Only the foundries that can solve the 16-layer bonding puzzle will emerge as the true sovereigns of the 2026 tech economy, while others will be buried under the weight of their own scrap silicon.

Related Tech Insights:

Sharp Question:

If the 16-layer HBM4 yield remains under 30%, will we see the birth of ‘Horizontal AI’—where memory is spread across more chips rather than stacked—killing the efficiency gains of the last decade?
